Ürün Bilgisi
Açıklama
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Standartlar ve Protokoller | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Arabirim | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Ağ Medyası | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Sayısı | Fanless |
| Güç Kaynağı | External Power Adapter(Output: 48VDC / 1.25A) |
| Güç Tüketimi | Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz) |
| PoE+ Portları (RJ45) | Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W |
| PoE Portları (RJ45) | Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W |
| PERFORMANS | |
|---|---|
| Anahtarlama Kapasitesi | 16Gbps |
| Paket Yönlendirme Hızı | 11.9Mpps |
| MAC Adres Tablosu | 4K |
| Paket Buffer Belleği | 1.5Mb |
| Jumbo Frame | 15KB |
| YAZILIM ÖZELLİKLERİ | |
|---|---|
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Özellikleri | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Yönetim | Web-based GUI Easy Smart Configuration Utility |
| İletim Metodu | Store-And-Forward |
| DİĞERLERİ | |
|---|---|
| Sertifika | FCC, CE, RoHS |

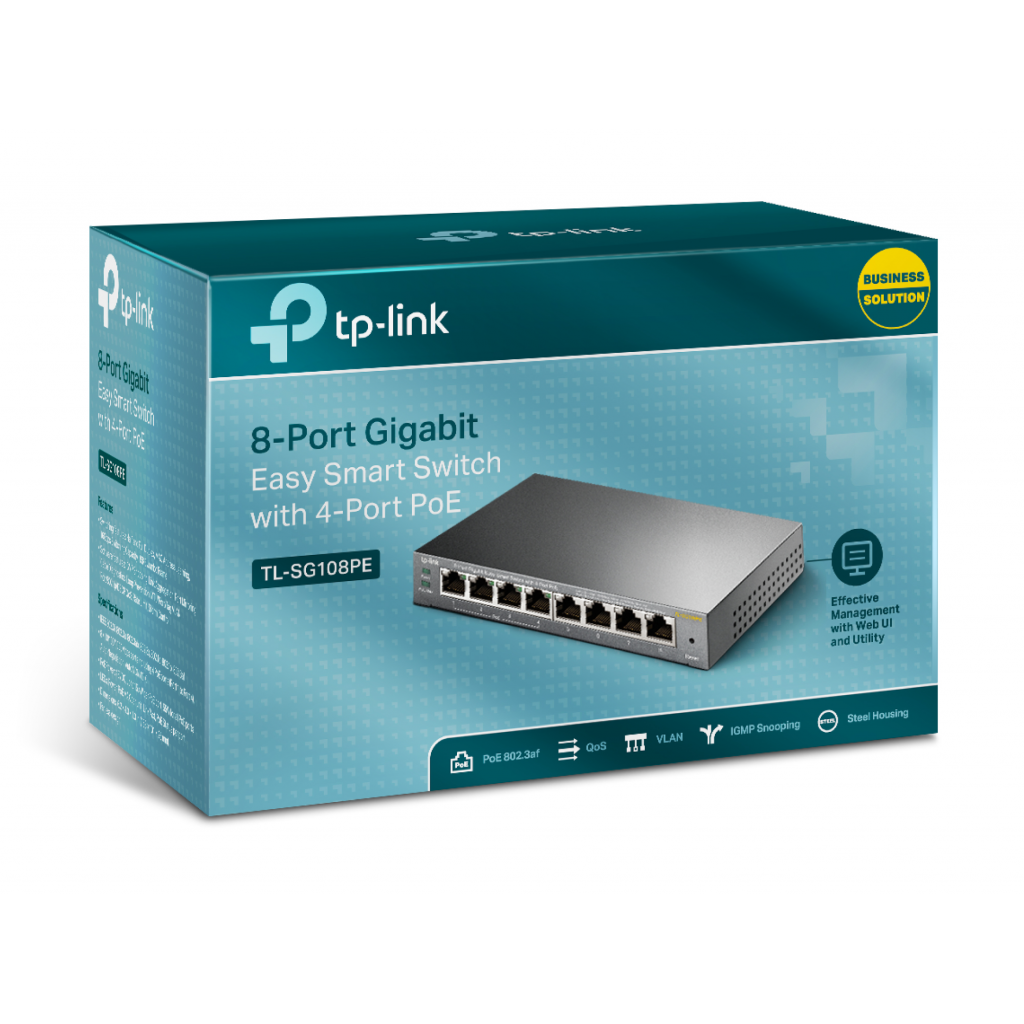

| Paket İçeriği | TL-SG108PE Power Adapter Installation Guide Resource CD Rubber Feet |
| Sistem Gereksinimleri | Microsoft® Windows® for running Utility |
| Ortam | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
