Ürün Bilgisi
Açıklama
| DONANIM ÖZELLİKLERİ | |
|---|---|
| Arabirim | 1× 2.5G Ethernet Port |

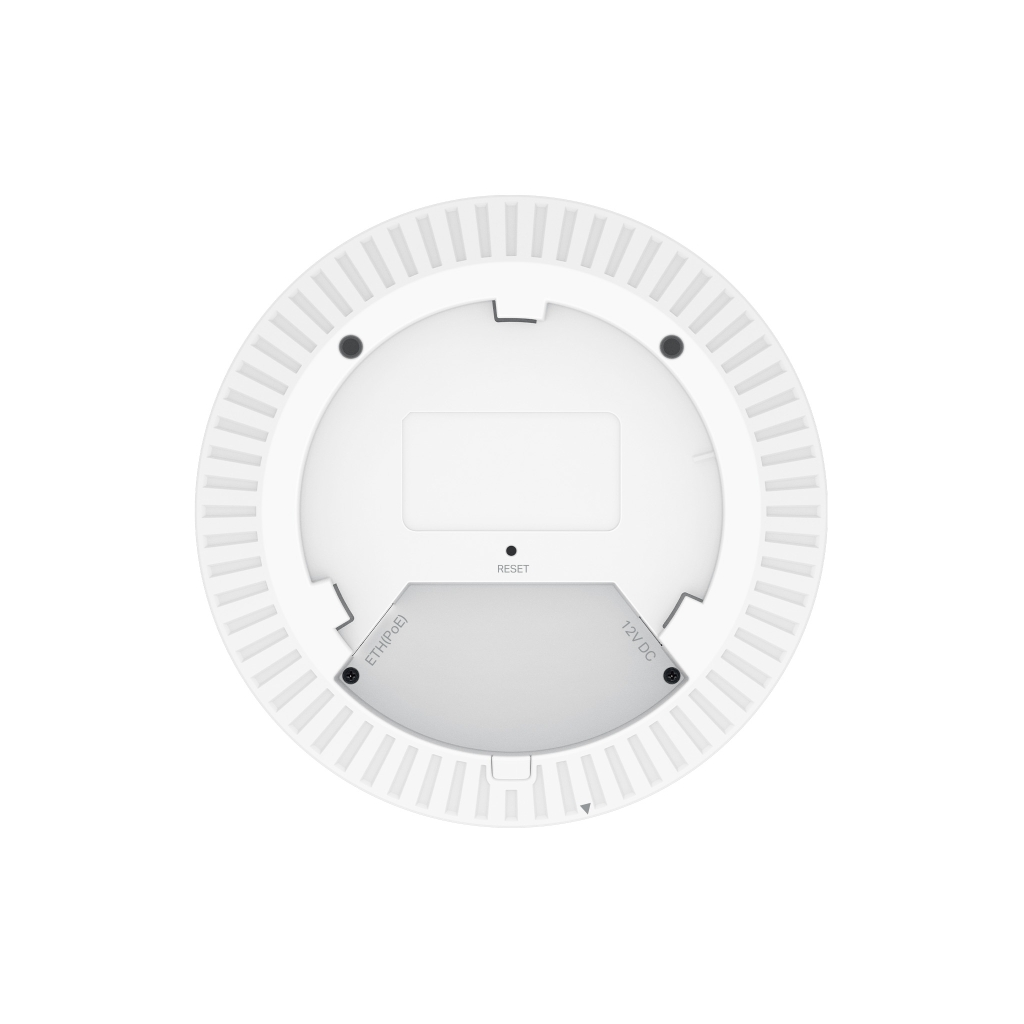

| Buton | Reset |
| Güç Kaynağı | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Güç Tüketimi | • 16.8 W (For PoE); • 13.0 W (For DC) |
| Boyutlar ( W X D X H ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Anten | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi |

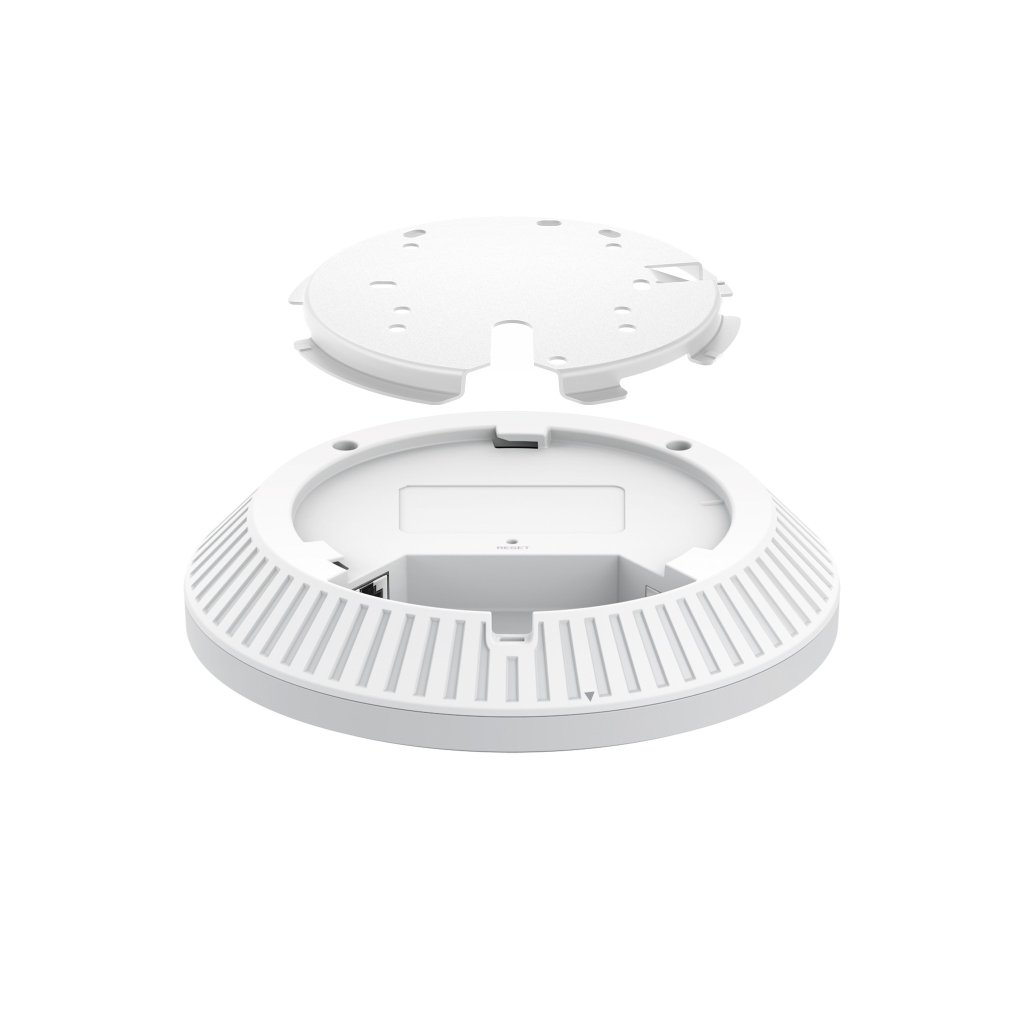

| Montaj | Ceiling / Wall Mounting (Kits Included) |
| KABLOSUZ ÖZELLİKLERİ | |
|---|---|
| Coverage | 140㎡(1500 ft²)*** |
| Concurrent Clients | 250+** |
| Kablosuz Standartlar | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frekans | 2.4 GHz and 5 GHz |
| Bağlantı Hızı | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Kablosuz Fonksiyonlar | • 4K-QAM‡ • Seamless Roaming • MU-MIMO‡ • EHT160‡ • Mesh△ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Kablosuz Güvenlik | • Captive Portal Authentication△ • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| İletim Gücü | < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) |
| YÖNETİM | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Eposta Uyarı | Yes |
| LED Açık/Kapalı Kontrolü | Yes |
| MAC Erişim Kontrolü Yönetimi | Yes |
| SNMP | v1, v2c, v3 |
| Yerel/Uzak Sistem Günlüğü Kaydı | Yes |
| Web-tabanlı Yönetim | Yes |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS, IC |
| Paket İçeriği | • EAP723 • Installation Guide • Ceiling/Wall Mounting Kit |
| Ortam | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
