Ürün Bilgisi
Açıklama
+ Model: AK-H610M EG VS
+ Soket: LGA1700
+ Yonga Seti: Intel H610
+ Bellek Desteği: Çift Kanallı DDR4
Genel bakış
- CPU Desteği: Intel Socket LGA1700 12/13/14 gen Core I3/I5/I7/I9 ve Celeron/Pentium işlemcileri destekler
- Yonga Seti: Intel H610 Yonga Seti
- Yerleşik Grafikler: Entegre Grafik İşlemcisi-Intel® HD Grafik desteği
- Bellek: 2xDDR4 DIMM 3200/2933/2800/2666/2400/2133MHz, Maksimum 64 GB'a kadar (Tek kanal Maksimum 32 GB'a kadar)
- DIMM: 2 x Bellek Yuvası
- LAN: Realtek 10/100/1000Mbps LAN yerleşik
- Ses: Dahili 6 kanallı HD ses çipi
- SATA: 3 X SATA3.0 1 X M.2 (NGFF/NVMe işaretini destekler)
- Dahili G/Ç: 1 x USB 2.0 başlığı ek 2 USB 2.0 bağlantı noktasını destekler, 1 x USB 3.0 başlığı ek 2 USB 3.0 bağlantı noktasını destekler
- Genişletme Yuvaları: 1 x PCI Express x16 yuvası 1 x PCI Express x1 yuvası
| Intel H610 Karşılaştırması | ||
|---|---|---|
| CPU Support | Supports Intel Socket LGA1700 12/13/14 gen Core I3/I5/I7/I9 and Celeron/Pentium processors | |
| Chipset | Intel H610 | |
| On-Board Graphics | Integrated Graphics Processor-Intel® HD Graphics support | |
| Memory | 2xDDR4 DIMM 3200/2933/2800/2666/2400/2133MHz, Max up to 64GB (Single channel Max up to 32GB) | |
| DIMM | 2 x Memory Slots | |
| LAN | Realtek 10/100/1000Mbps LAN onboard | |
| Audio | Realtek 6-channel HD audio | |

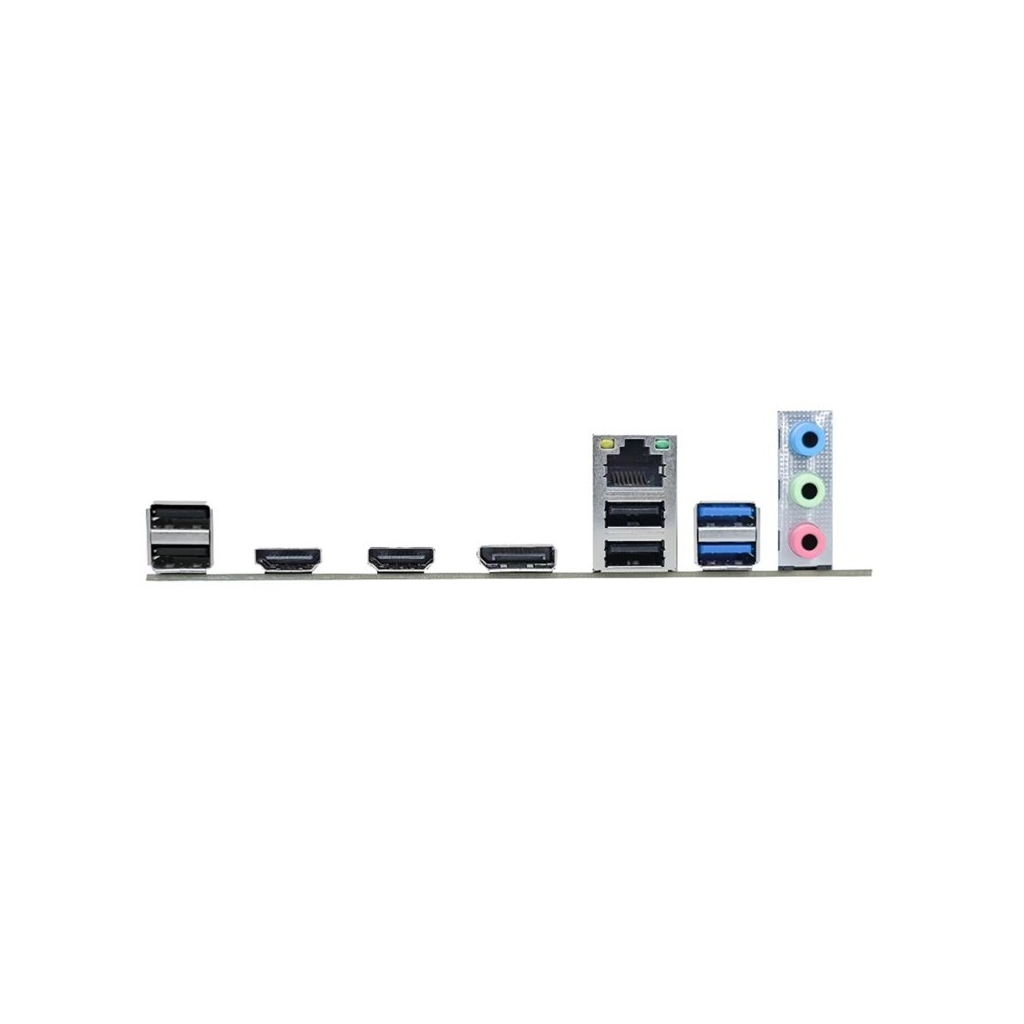

| Real I/O | 1 x DP port, 2 x HDMI port, 4 x USB 2.0 port, 2 x USB 3.0 port, 1 x LAN jack, 3 x Audio jack | |
| Internal I/O | 1 x USB 2.0 header supports additional 2 USB 2.0 ports, 1 x USB 3.0 header supports additional 2 USB 3.0 ports | |
| SATA | 3 X SATA3.0 1 X M.2 (support NGFF/NVMe sign） | |
| Form Factor | Micro-ATX (18 x 21.4 cm) | |
| Expansion Slots | 1 x PCI Express x16 slot 1 x PCI Express x1 slot | |
| OS Support | Support Windows 7 / 8 / 8.1 / 10(x64) | |
| Mounting | 6 mounting holes | |
| Accessories | 1 x SATA cable, 1 x I/O Backboard, 1 x User Manual, 1 x Driver CD | |
| Remark | All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. |
