Ürün Bilgisi
Açıklama
Intel H510

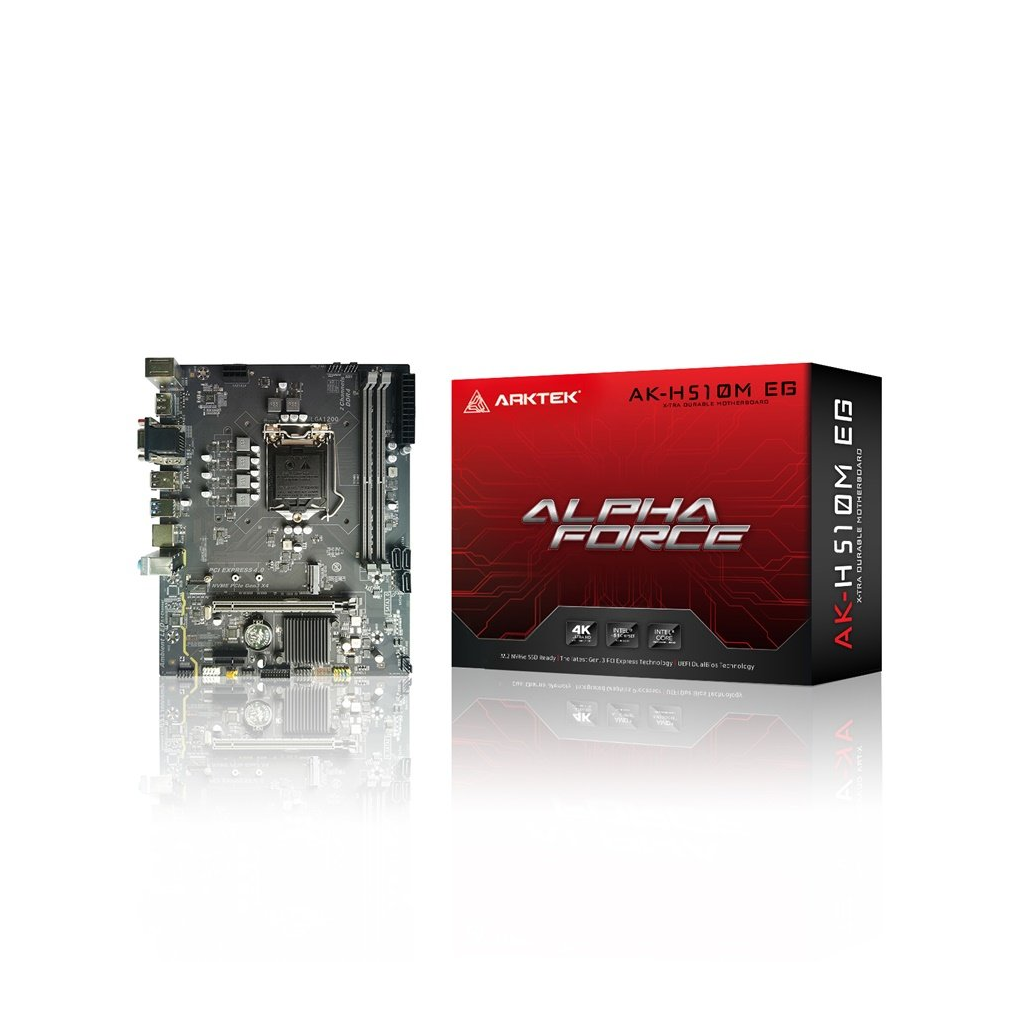

+ Model: AK-H510M EG
+ Soket: LGA1200
+ Chipset: Intel H510
+ Bellek Desteği: Çift Kanallı DDR4
genel bakış
- CPU Desteği: LGA 1200 soketi için 11./10. nesil Comet Lake-S Corei9/Corei7/Corei5/Corei3/Pentium/Celeron serisi işlemcileri destekler
- Yonga Seti: Intel H510 Yonga Seti
- Yerleşik Grafikler: Tümleşik Grafik İşlemci-Intel® HD Graphics desteği
- Bellek: Çift Kanallı DDR4 2133/2400/2800/3000/3200MHz XMP hız aşırtma desteği
- DIMM: 2 x Bellek Yuvası
- LAN: Yerleşik Realtek 100/1000 Mbps Gigabit LAN
- Ses: 3,5 mm Bağlantı Noktası, 5,1 Kanal, LED Ses Desteği
- SATA: 3 X SATA3.0 6 Gb/sn M.2 (PCI-E 3.0 X4 NVME SSD)
- Dahili G/Ç:3x USB konektörü, 4*USB 2.0 ve 2*USB 3.0'ı destekleyebilir
- Genişletme Yuvaları: 1 x PCI Express x16 yuvası 1 *PCI Express x1 yuvası
Spesifikasyon
| INTEL H510 | ||
|---|---|---|
| CPU Support | Support 11th/10th generation Comet Lake-S Corei9/Corei7/Corei5/Corei3/Pentium/Celeron series processors for LGA 1200 socket | |
| Chipset | Intel H510 Chipset | |
| On-Board Graphics | Integrated Graphics Processor-Intel® HD Graphics support | |
| Memory | Dual Channel DDR4 2133/2400/2800/3000/3200MHz Support XMP overclock | |
| DIMM | 2 x Memory Slots | |
| LAN | Realtek 100/1000 Mbps Gigabit LAN onboard | |
| Audio | 3.5mm Port, 5.1 Channel, LED Audio Support | |

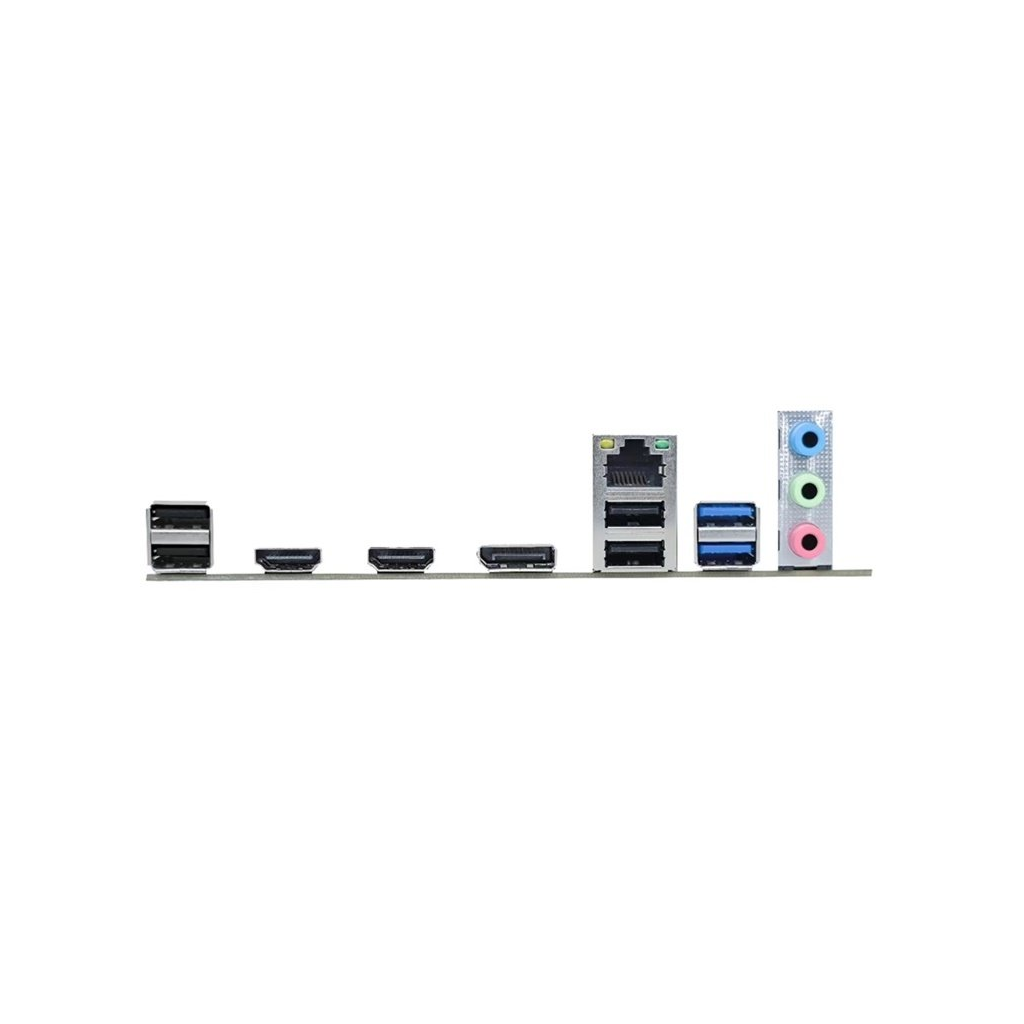

| Real I/O | 1 x PS/2 mouse port 1 x PS/2 keyboard port 1 x DP port 1 x HDMI port 2 x USB 2.0 port 2 x USB 3.0 port 1 x RJ45 3 x Audio jack | |
| Internal I/O | 3x USB connector, can support 4*USB 2.0 & 2*USB 3.0 | |
| SATA | 3 X SATA3.0 6Gb/s M.2 (PCI-E 3.0 X4 NVME SSD | |
| Form Factor | Micro-ATX (22cm X 17 cm) | |
| Expansion Slots | 1 x PCI Express x16 slot 1 *PCI Express x1 slot | |
| OS Support | Support Windows 7 / 8 / 8.1 / 10 / 11 (x64) | |
| Mounting | 6 mounting holes | |
| Accessories | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD | |
| Remark | All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies. |
